CHAPTER 18 675

not have any benzylic protons, so no bromine atoms are
installed in that location. Only the methyl group
undergoes benzylic bromination (exhaustively), as
shown:


18.53.

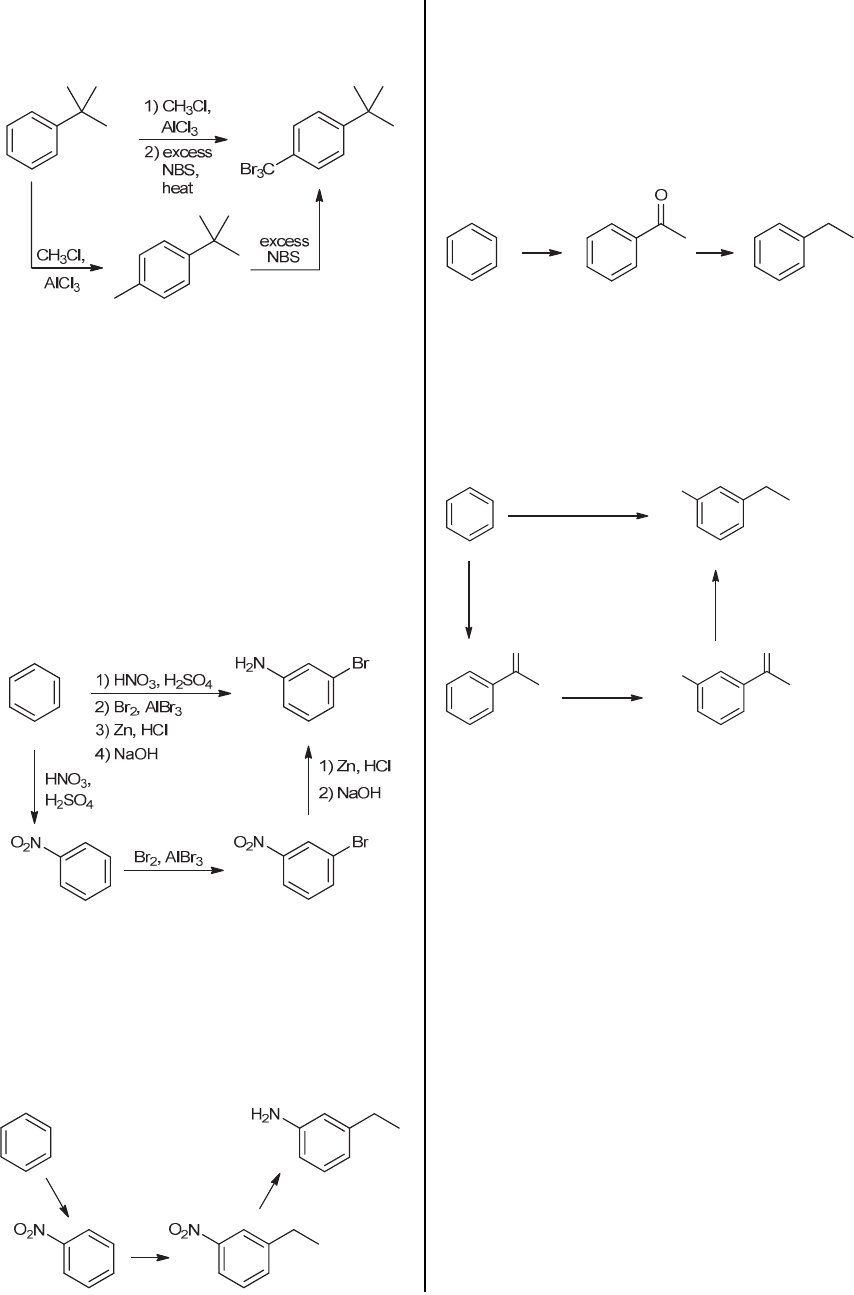

(a) Installation of the amino group requires a two-step
process (nitration, followed by reduction), while
installation of the bromine atom can be achieved in just
one step.
Now let’s consider the order of events. These two
groups must be installed in a meta fashion, but both
groups are ortho-para directors. Installation of these two
groups (in either order) does not appear to give the
desired meta substitution pattern. However, recall that
installation of the amino group requires two steps. The
first step is nitration, and a nitro group is a meta-director.
So, we can achieve the desired transformation by
performing the bromination process after the nitration
process but before the reduction process, as shown here:



(b) Installation of the amino group requires two steps
(nitration, followed by reduction), while installation of
the ethyl group can be achieved in just one step (via a
Friedel-Crafts alkylation). The substituents must be
installed in a meta fashion, yet both substituents are
ortho-para directors. To circumvent the problem, we
consider utilizing the meta-directing effects of the nitro
group to achieve the desired regiochemical outcome:


However, this strategy will not succeed because the
middle step is flawed. Specifically, a Friedel-Crafts
alkylation cannot be performed on a strongly deactivated
ring (such as nitrobenzene). Therefore, we must find
another way to install the two groups in a meta fashion.
The trick that we used in the solution to Problem 19.57a
can be used here again. That is, we install the ethyl
group via a two-step process (Friedel-Crafts acylation,
followed by reduction):


By installing the ethyl group in this way, we can
capitalize on the directing effects of the carbonyl group,
before reducing it. As seen below, a Friedel-Crafts
acylation installs an acyl group, which is a meta-director.
Subsequent nitration allows for the installation of a nitro
group in the meta position. And finally, reduction (of
both groups) gives the product, as shown.

H2N
1) CH3COCl, AlCl3
2) HNO3, H2SO4
3) HCl, Zn(Hg), heat
CH3COCl, AlCl3
O
HNO3,
O
O2N
1) HCl, Zn(Hg), heat
H2SO4
2) NaOH
4) NaOH


18.54.
(a) The second step of the synthesis will not work,
because a strongly deactivated ring will not undergo a
Friedel-Crafts alkylation. The product of the first step,
nitrobenzene, will be unreactive in the second step.
(b) The second step of the synthesis will not efficiently
install a propyl group, because a carbocation
rearrangement can occur, which can result in the
installation of an isopropyl group. A mixture of products
is expected.
(c) The second step of the synthesis will not install the
acyl group in the meta position. It will be installed in a
position that is either ortho or para to the bromine atom.
(d) The second step of the synthesis will not install the
bromine atom in the ortho position, because of steric
hindrance from the tert-butyl group. Bromination will
occur primarily at the para position.

18.55.
(a) This compound has two aromatic rings, each of
which is monosubstituted. One aromatic ring (left) is
connected directly to a carbonyl group and is therefore
deactivated. The other aromatic ring (right) is connected
to a methylene group (CH2) and is therefore activated
(the substituent is treated like an alkyl group). So, we
expect monobromination to occur on the activated ring.
