CHAPTER 13 475

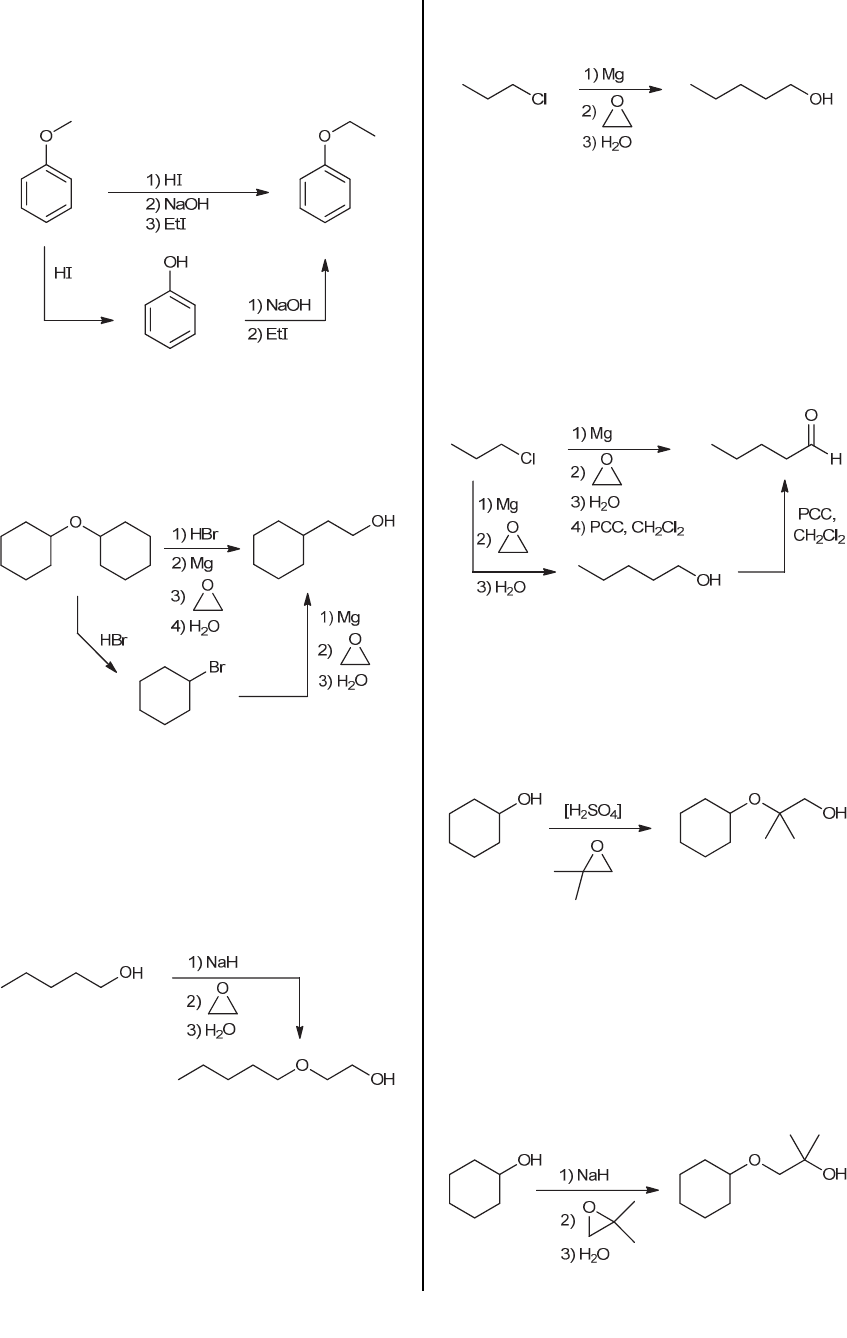

(m) We did not learn a way to alkylate an ether.
However, we did learn a way to cleave a phenyl ether to
give phenol. A Williamson ether synthesis can then be
used to reinstall the alkyl group (this time an ethyl group,
rather than a methyl group):




(n) The starting material is an ether, which will undergo
cleavage when treated with HBr to give
bromocyclohexane. Conversion of this alkyl halide into
a Grignard reagent, followed by treatment with ethylene
oxide (and aqueous work-up), gives the desired product.




(o) Two carbon atoms are installed, with a functional
group on the second carbon atom of the newly installed
chain. This indicates a reaction involving an epoxide.
The alcohol is first deprotonated with a strong base (such
as NaH) to give an alkoxide ion, which is then treated
with ethylene oxide to give a ring-opening reaction. The
resulting alkoxide ion is protonated upon aqueous work-
up to give the desired product:




(p) Two carbon atoms are installed, with a functional
group on the second carbon atom of the newly installed
chain. This indicates a reaction involving an epoxide.
The starting alkyl halide is converted into a Grignard
reagent, which is then treated with ethylene oxide,
followed by water work-up. This installs the two carbon
atoms, and simultaneously installs the correct functional
group in the correct location (at the second carbon atom
of the newly installed chain):



(q) Two carbon atoms are installed, with a functional
group on the second carbon atom of the newly installed
chain. This indicates a reaction involving an epoxide.
The starting alkyl halide is converted into a Grignard
reagent, which is then treated with ethylene oxide,
followed by water work-up. This installs the two carbon
atoms, and simultaneously installs a functional group in
the correct location (at the second carbon atom of the
newly installed chain). Oxidation of the primary alcohol
with PCC (or DMP, or with a Swern oxidation) gives the
desired aldehyde:


(r) This conversion can be achieved in one step, by
treating the starting material with the epoxide shown, in
the presence of acid catalysis. Under these conditions,
the alcohol functions as a nucleophile and attacks a
protonated epoxide to give a ring-opening reaction in
which the nucleophile attacks the more substituted
tertiary position (due to an electronic effect).



(s) This transformation is similar to the previous problem
(13.51r), although in this case, the nucleophilic attack
must occur at the less substituted position. This requires
treating an epoxide with a strong nucleophile in basic
conditions. The starting alcohol is first deprotonated
with a strong base (such as NaH), and the resulting
alkoxide ion is treated with the epoxide shown below.
The resulting ring-opening reaction, followed by
aqueous work-up, gives the desired product.
