CHAPTER 12 433

a. Duryne can be made from the reaction between the bis-vinyl Grigard reagent (a dianion) and two equivalents
of the aldehyde shown.
b. The bis-vinyl Grignard is made from the bis-vinyl bromide and two equivalents of magnesium.
c. The cis alkene is produced via reduction of the corresponding internal alkyne.
d. The alkyne is made by sequentially alkylating each carbon of acetylene with E-1,11-dibromo-1-undecene.
Note that while there are two bromines on this molecule, only the bromide attached to the sp3 hybridized
atom carbon can serve as a leaving group in an SN2 reaction.

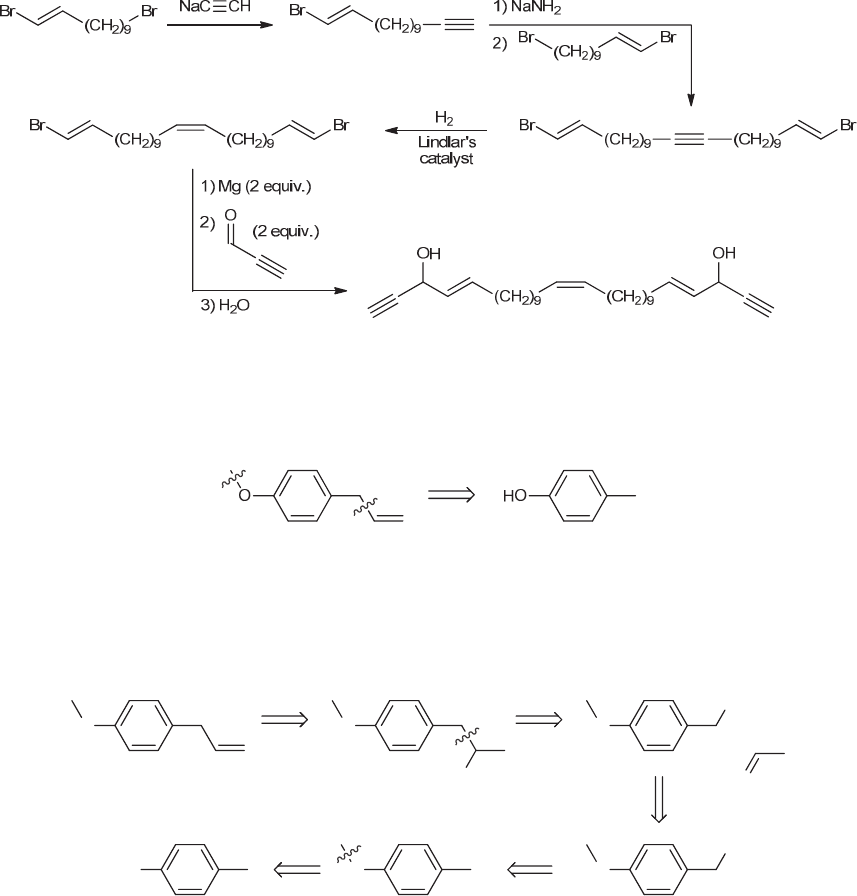

Now let’s draw the forward scheme. The starting material, E-1,11-dibromo-1-undecene, is treated with sodium
acetylide to produce a terminal alkyne. Deprotonation with sodium amide, followed by treatment with a second
equivalent of E-1,11-dibromo-1-undecene gives the internal alkyne. Reduction of the alkyne with H2 and Lindlar’s
catalyst affords the cis alkene. Further treatment with two equivalents of magnesium yields the bis-vinyl Grignard,
which reacts with two equivalents of the aldehyde. Aqueous workup produces the target molecule, duryne.




12.67. The following synthesis is one suggested synthetic pathway. There are certainly other acceptable approaches
that accomplish the same goal.
By comparing the structures of the starting material (4-methylphenol) and the product, it is clear that the following
bonds (indicated by wavy lines below) need to be made in this synthesis.



The left bond (C-O) can be made via an SN2 process, while the right bond (C-C) can be made by either a Grignard
reaction or by using an acetylide ion as a nucleophile. It is important that we make the ether bond early in our scheme
to avoid an acid/base reaction between the phenolic proton (pKa ≈ 10) and the Grignard reagent or acetylide (both of
which are strong bases). If the phenolic proton is subjected to a Grignard reagent, the latter would be destroyed via
protonation. The same fate would occur for an acetylide ion that is treated with a compound bearing a phenolic proton.
The following is a retrosynthetic analysis for our target compound. An explanation of each of the steps (a-e)
follows.
O O
HO
O
O
MgBr
O
Br
OHO
a
de
b
c
+



a. We can make the monosubstituted alkene by converting the OH group into a tosylate group and then
performing an elimination reaction with a sterically hindered base.
