CHAPTER 13 477

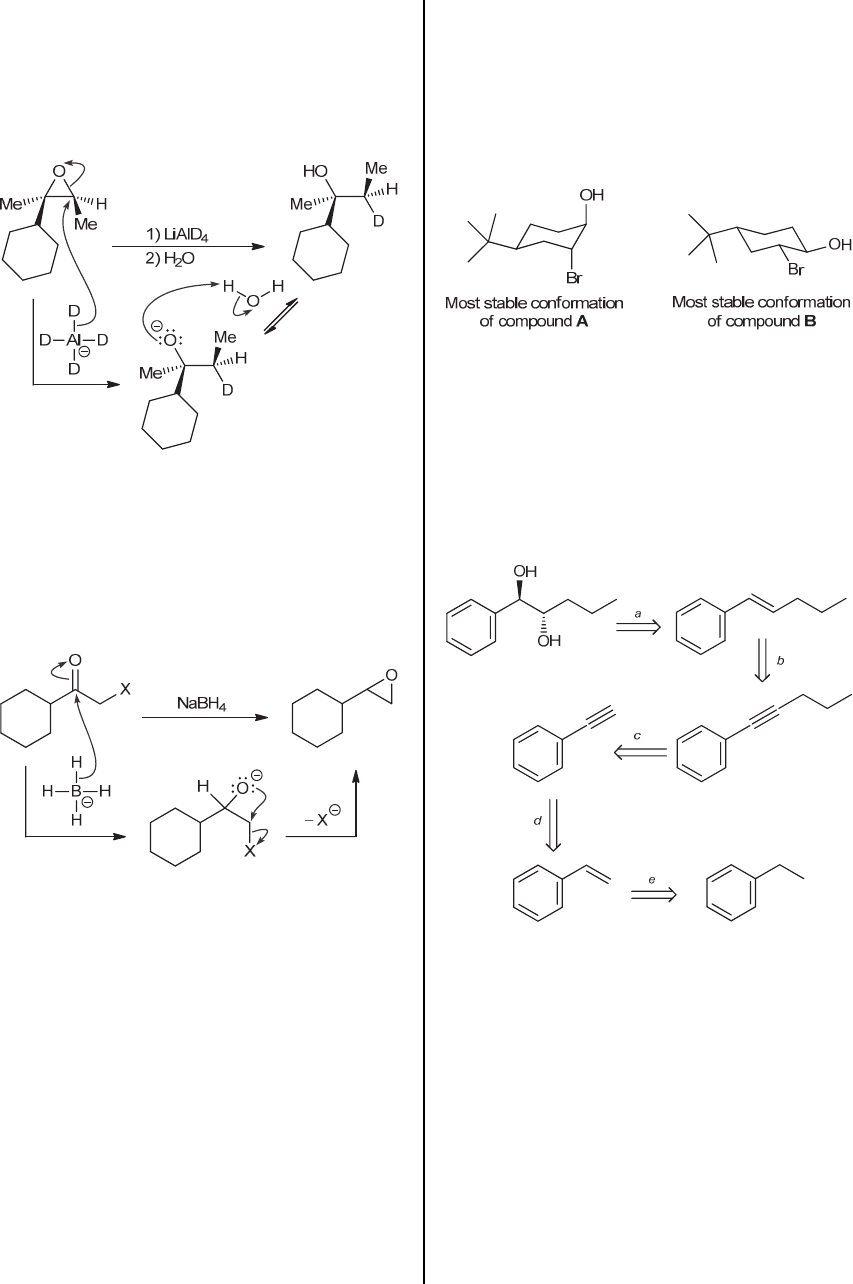

13.56. LiAlD4 is expected to function very much like
LiAlH4. That is, it is expected to be a delivery agent of
D¯ (rather than H¯), which attacks the less hindered
position (secondary rather than tertiary), with inversion
of configuration at that position. The resulting alkoxide
ion is then protonated upon treatment with water, to give
the product shown.




13.57. NaBH4 is expected to serve as a delivery agent
of H¯, which attacks the electrophilic carbonyl group
(that carbon atom is electrophilic because of both
resonance and induction). The resulting alkoxide ion can
then undergo an intramolecular SN2-type reaction,
expelling a halide as a leaving group, and generating the
epoxide, as shown:



13.58 When methyloxirane is treated with HBr, the
regiochemical outcome is determined by a competition
between steric and electronic factors, with steric factors
prevailing – bromide attacks the less substituted position.
However, when phenyloxirane is treated with HBr,
electronic factors prevail in controlling the regiochemical
outcome. Specifically, the position next to the phenyl
group is a benzylic position and can stabilize a large
partial positive charge. In such a case, electronic factors
are more powerful than steric factors, and bromide
attacks the more substituted position.


13.59. This process for epoxide formation involves
deprotonation of the hydroxyl group, followed by an
intramolecular SN2-type attack. Recall that SN2
processes occur via back-side attack, which can only be
achieved when both the hydroxyl group and the bromine
occupy axial positions on the ring. Due to the steric bulk
of a tert-butyl group, compound A spends most of its
time in a chair conformation that has the tert-butyl group
in an equatorial position. In this conformation, the OH
and Br are indeed in axial positions, so the reaction can
occur quite rapidly. In contrast, compound B spends
most of its time in a chair conformation in which the OH
and Br occupy equatorial positions. The SN2 process
cannot occur from this conformation.



When compound A is treated with NaOH, the hydroxyl
group in compound A is deprotonated, giving an
alkoxide ion which can serve as a nucleophile in an
intramolecular SN2-type attack that gives an epoxide.

13.60. There are certainly many acceptable methods for
achieving the desired transformation. The following
retrosynthetic analysis represents one such method. An
explanation of each of the steps (a-e) follows.



a. The diol can be made from the trans alkene, by
converting the alkene into an epoxide and then
opening under aqueous acidic conditions (or under
basic conditions).
b. The alkene can be made from the corresponding
alkyne via a dissolving metal reduction.
c. The alkyne can be made via alkylation of a terminal
alkyne.
d. The terminal alkyne can be made from the
corresponding alkene via bromination followed by
elimination with NaNH2.
e. The alkene can be made from the alkane via
bromination, followed by elimination with a strong
base, such as NaOEt.
